LogoEugenio´s Warships ( http://www.losbarcosdeeugenio.com)

     LM-39 Uribe

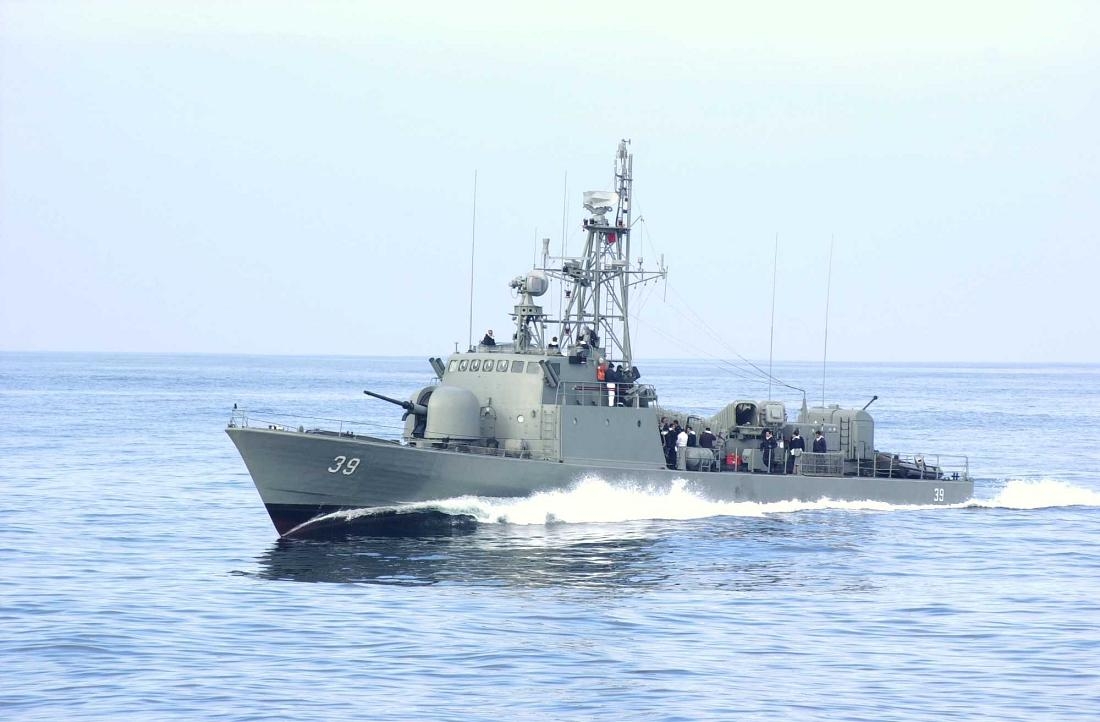

Photo byRichard Brito
Country: Chile Chile
Class, [Type]: Type 148, [PTG].
Builder: CMN, Cherbourg, France.
Launch date: 27 September 1972.
Commission date: 22 September 1998.

Displacement ( tons ): 234 standard, 265 full load.
Dimensions ( metres ): 47 x 7 x 2,7
Main machinery: 4 x MTU 16V396 diesels ( 12.840 hp ).
Speed ( knots ): 36.
Range ( miles ): 570 at 30 knots, 1.600 at 15 knots.
Complement: 30 ( 4 officers ).

Guns: 1 x OTO Melara 76mm/62, 1 x Bofors 40mm/70, 2 x Browning M2 12,7mm.
Missiles:  SSM: 4 x Aerospatiale MM 38 Exocet ( two double launchers ).

Radar: Air/Surface: Thomson CSF Triton, G band; Navigation: SMA 3 RM 20, I band; Fire Control: Thomson CSF Castor, I/J bands.
Countermeasures: Decoys: Wolke chaff launcher; ESM/ECM: Racal Octopus ( Cutlass B1 radar interceptor, Scorpion jammer ).

Comment: Ex - German P-6141 Tiger.
Homeport: Iquique.
Unit: Missile Boat North Command.

Similar units:
Chile LM37 Teniente Orella
Chile LM38 Serrano
Germany P6153 Pelikan
Germany P6154 Elster
Germany P6155 Alk
Germany P6156 Dommel
Germany P6158 Pinguin
Germany P6159 Reiher
Germany P6160 Kranich
