     509 Hasdrubal

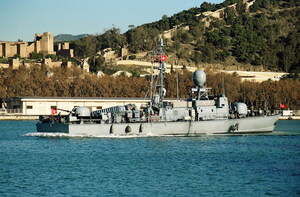

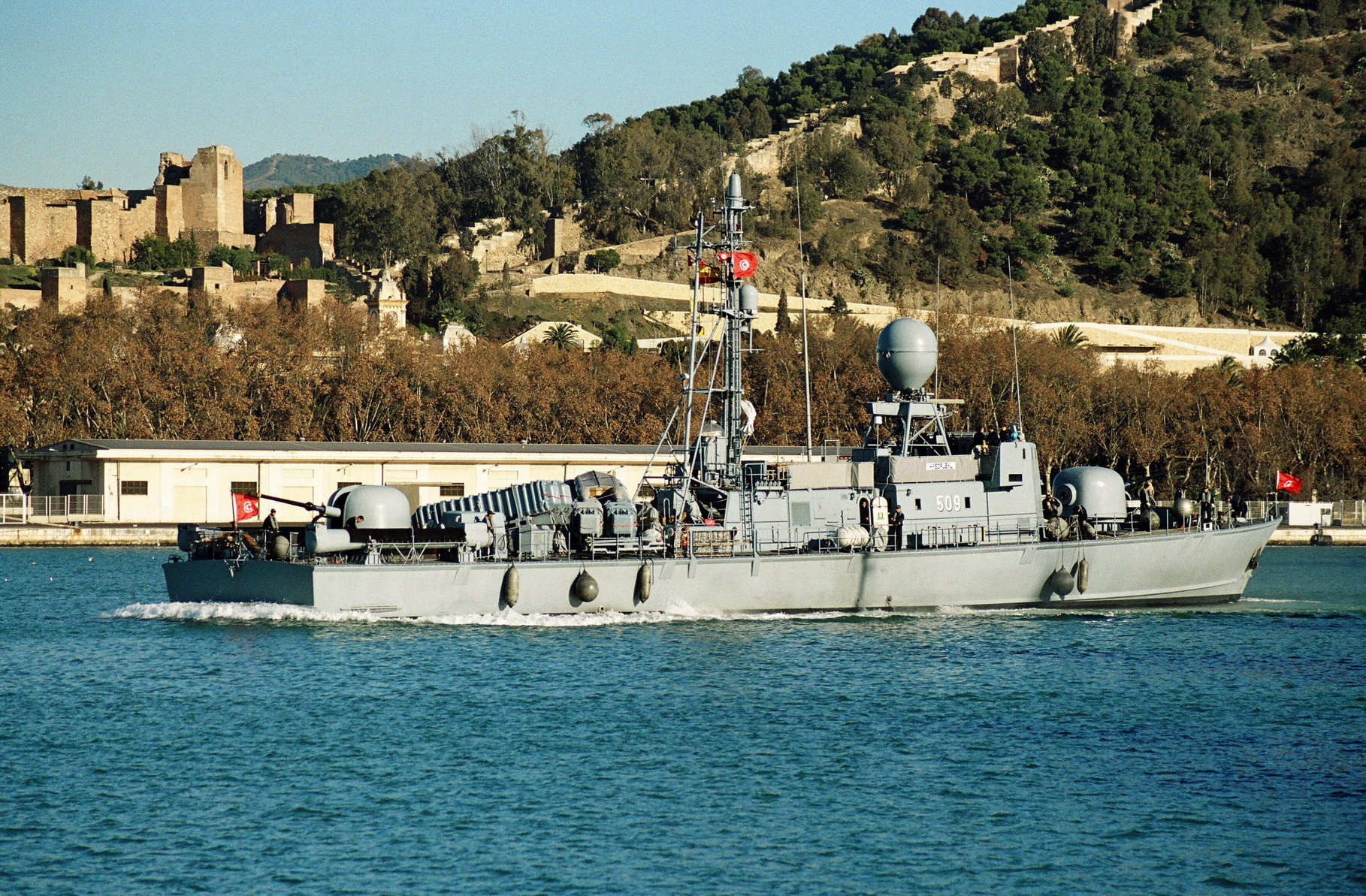

Photo byJavier Bueno Iturbe, Málaga
Country: Tunisia Tunisia
Class, [Type]: Type 143, [PTG].
Builder: Krögerwerft, Rendsburg, Germany.
Launch date: 05 June 1975.
Commission date: 13 December 2005.

Displacement ( tons ): 398 full load.
Dimensions ( metres ): 57,6 x 7,8 x 2,6
Main machinery: 4 x MTU 16V 956 TB91 diesels ( 17.700 hp ).
Speed ( knots ): 40.
Range ( miles ): 1.300 at 30 knots.
Complement: 40 ( 4 officers ).

Guns: 2 x OTO Melara 76/62mm.
Missiles:  SSM: 4 x Aerospatiale MM 38 Exocet ( two double launchers ).
Torpedoes: 2 x 533mm tubes for AEG Seeal.

Radar: Surface/Firing: Signaal WM27, I/J bands; Navigation: SMA 3 RM 20, I band.
Countermeasures: Decoys: Buck-Wegmann Hot Dog/Silver Dog ( infrared flares / chaff ); ESM/ECM: Racal Octopus ( Cutlass interceptor, Scorpion jammer ).

Comment: Former P6119 Habitch ( Germany ).

Similar units:
Tunisia 510 Giscon
Germany P6112 Falke
Germany P6116 Greif
Germany P6117 Kondor
