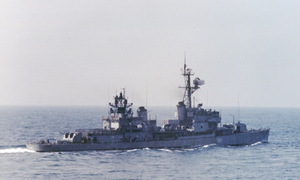

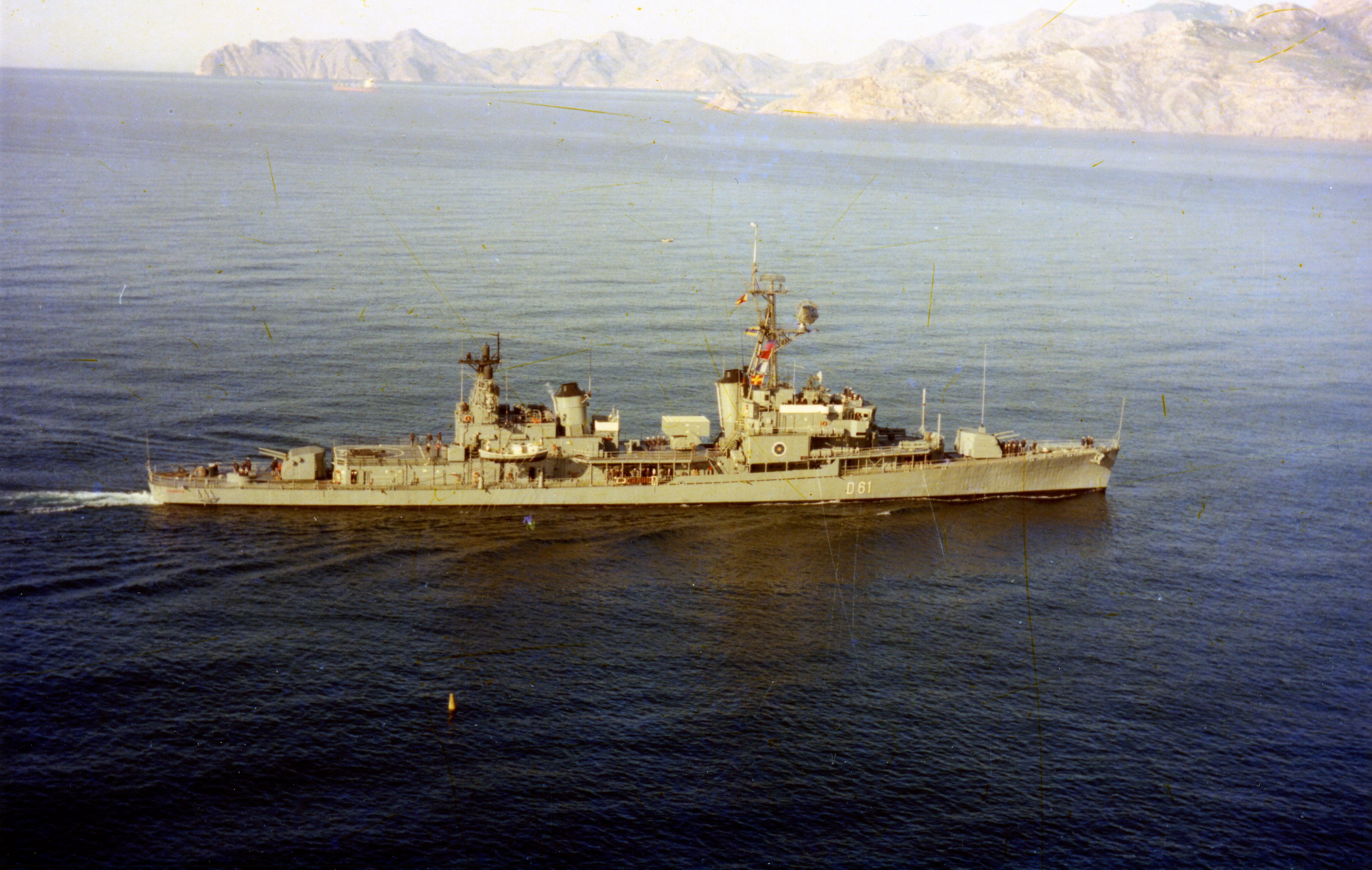

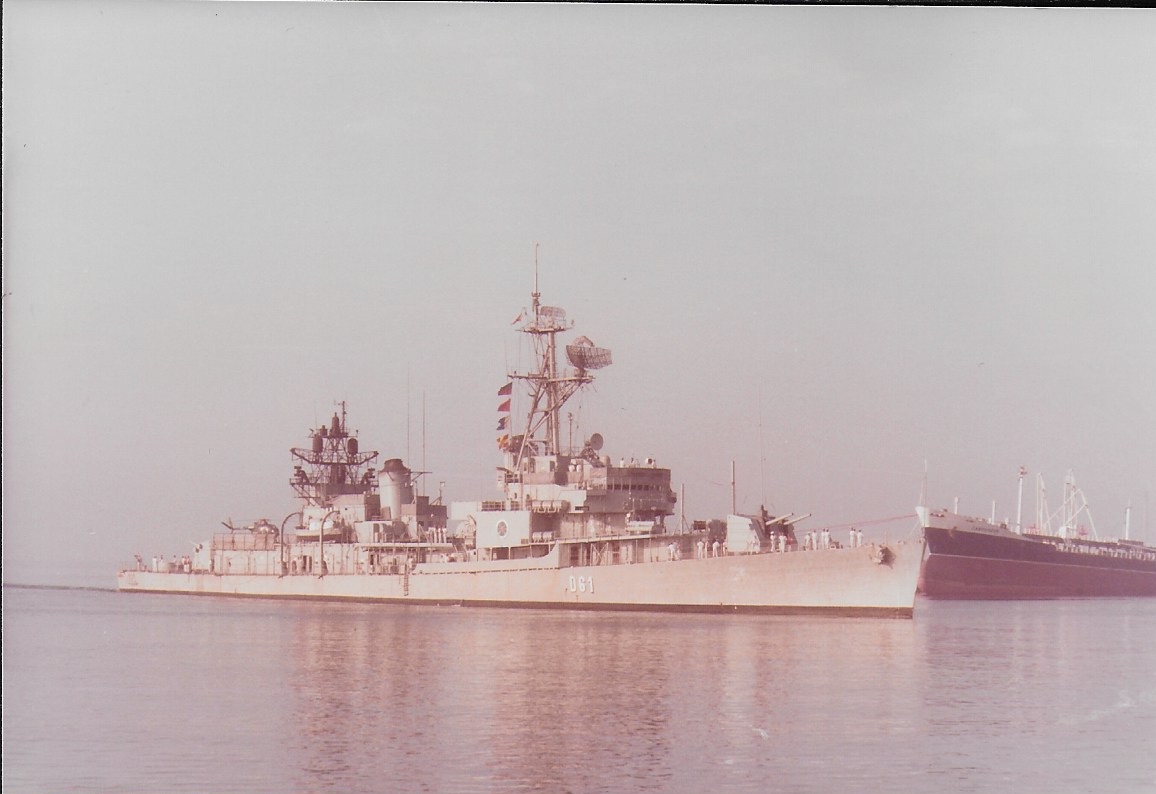

D-61 Churruca

Country: Spain

Class, [Type]: Gearing, [DD].

Builder: Federal SB & DD Co. Kearny, New Jersey, U.S.A.

Launch date: 18th March 1945.

Commission date: 8th June 1945.

Decommission date: 15th September 1989.

 Design by Antoni Casinos

Displacement ( tons ): 2.425 standard, 3.480 full load.

Dimensions ( metres ): 119 x 12,4 x 5,8

Main machinery: 2 x Westinghouse or GE turbines ( 60.000 hp ), 4 x Babcock Wilcox boilers..

Speed ( knots ): 34.

Range ( miles ): 4.800 at 15 knots.

Complement: 274 ( 17 officers ).

Guns: 4 x 127mm/38 ( 2 x double mountings ).

Torpedoes: 6 x Mk32 tubes ( two triple mountings ), 1 x ASROC launcher.

Radar: Search: SPS 40; Surface search: SPS 10; Fire Control: Mk68 system with radar directed Mk37 and Mk56 directors.

Sonar: SQS 23, hull mounted.

Countermeasures: 2 x SRBOC Mk36, chaff and flare launchers; ESM/ECM: AN/WLR 1 ( warning ), ULQ-6 ( jammer ).

Helicopter: 1 x Hughes 500M.

Comment: Ex - USS Eugene A. Greene ( DD 711 ). Transferred on 31st August 1972, and finally purchased on 1975. The ship was sunk in an exercise on 12th December 1991 in waters surrounding the Canary Islands.

Similar units:
