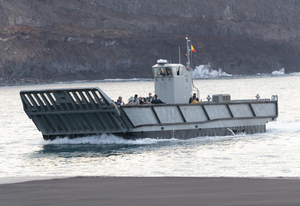

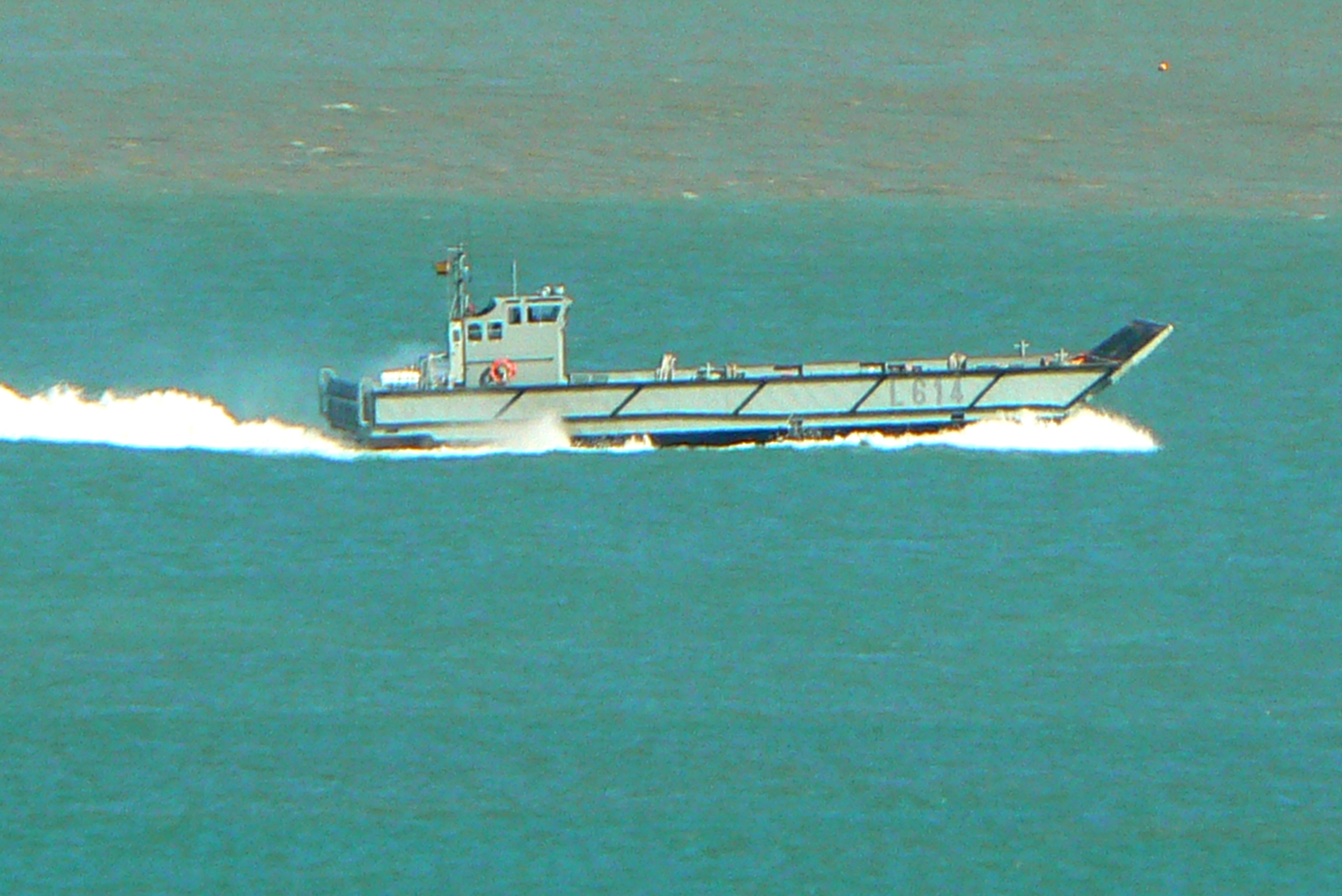

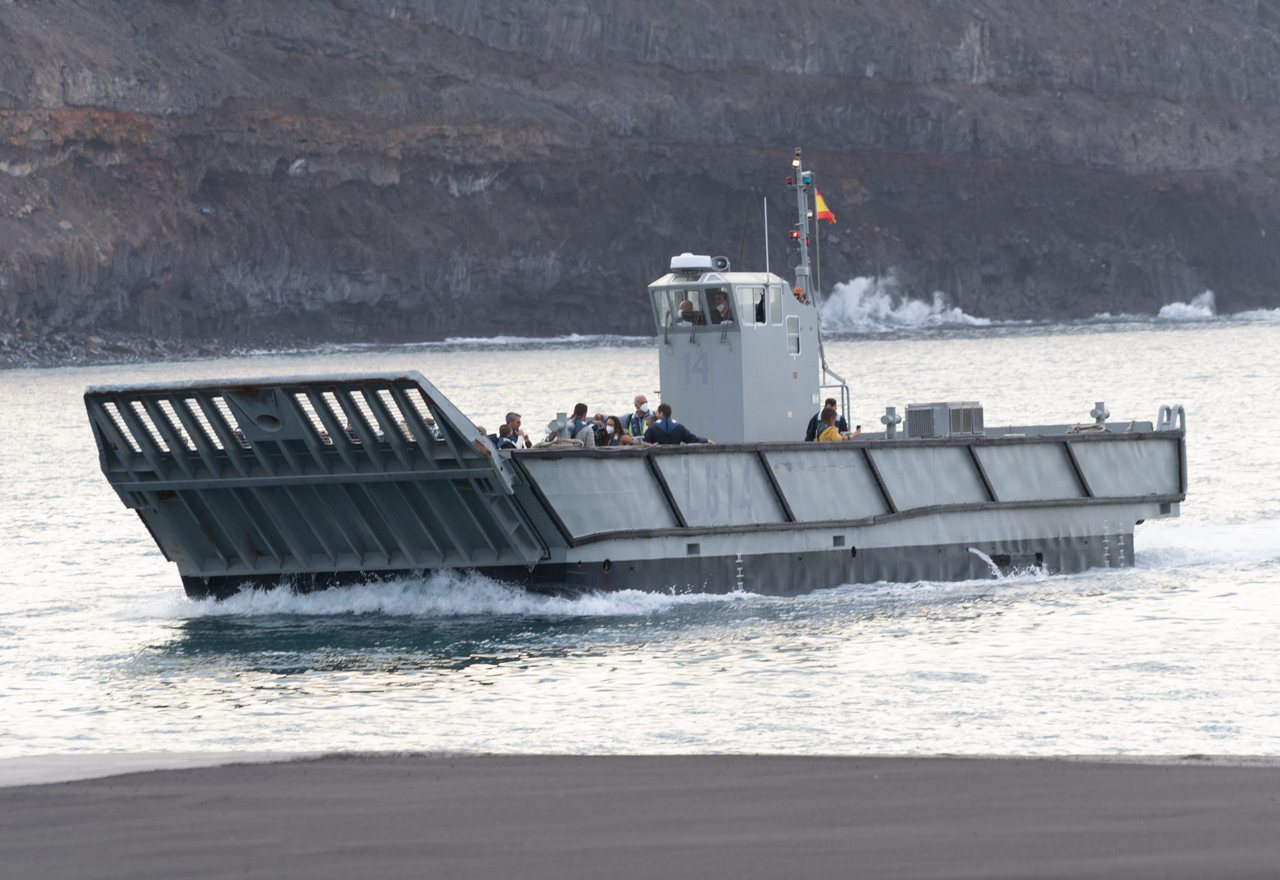

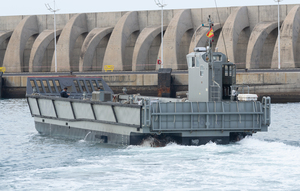

Class, [Type]: LCM-1E, [LCM].
Builder: Navantia, San Fernando, Spain.
Commission date: 24 January 2008.
Displacement ( tons ): 108.
Dimensions ( metres ): 23,3 x 6,4 x 1,04 ( loaded )
Main machinery: 2 x Bazán-MTU diesels, 2 x waterjets ( 2.200 hp ).

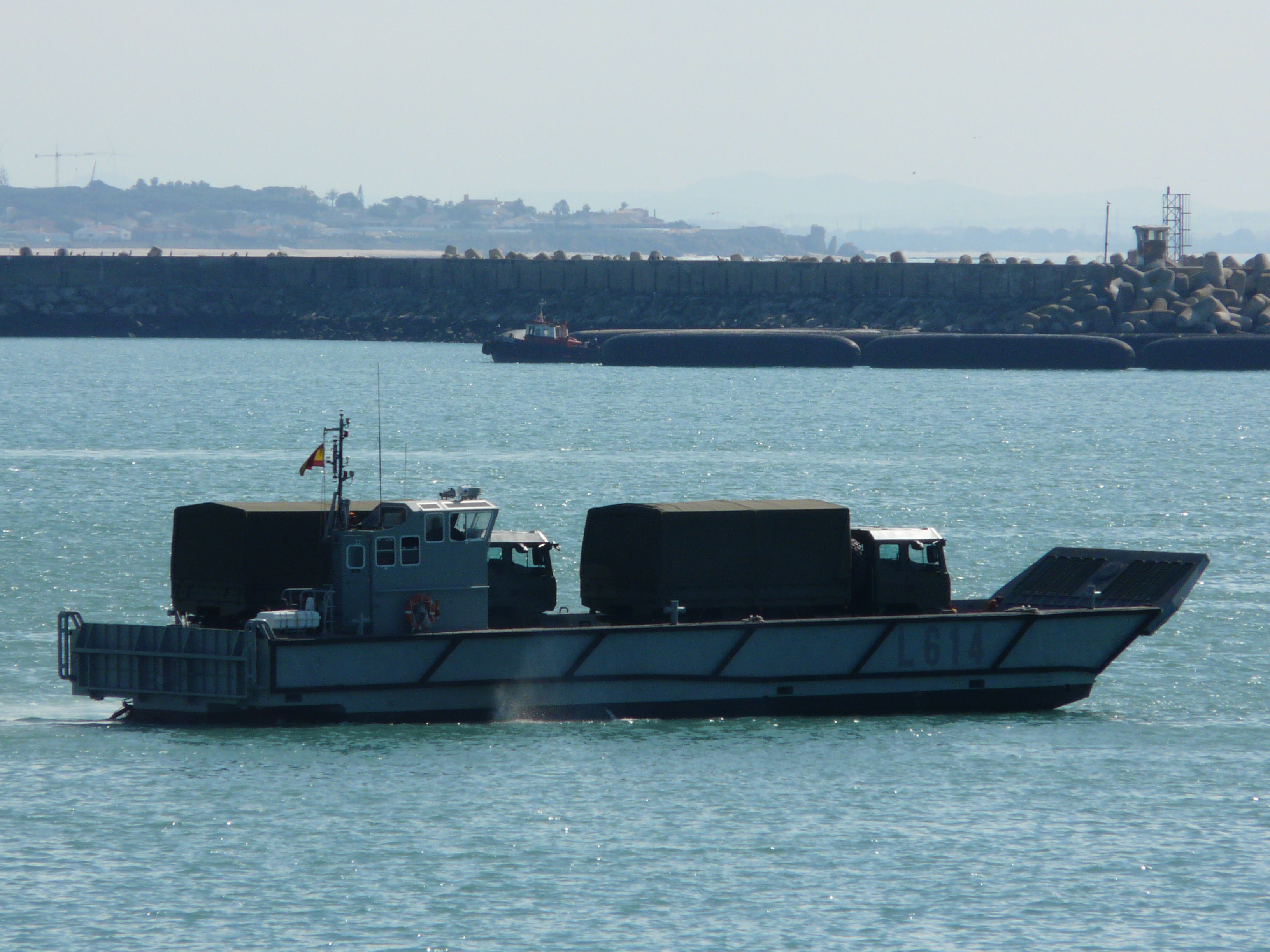

Military lift: 56 tons ( 100 tons overloaded ). 100 square meters deck. Possible configurations: 1 x M-60 A3 or 6 x HUMMER or 2 x 6tons trucks with tow, or 1 x M-109A2 howitzer with M-992 ammunition vehicle.
Radar: Navigation: ANRITSU.
Callsign: EBPB ( )
Comment: Steel construction. Bow and stern ramps are fitted. L601 and L602 are prototypes, units starting on L603 have improved capabilities and fixes to problems detected.
