     M-22 Ebro

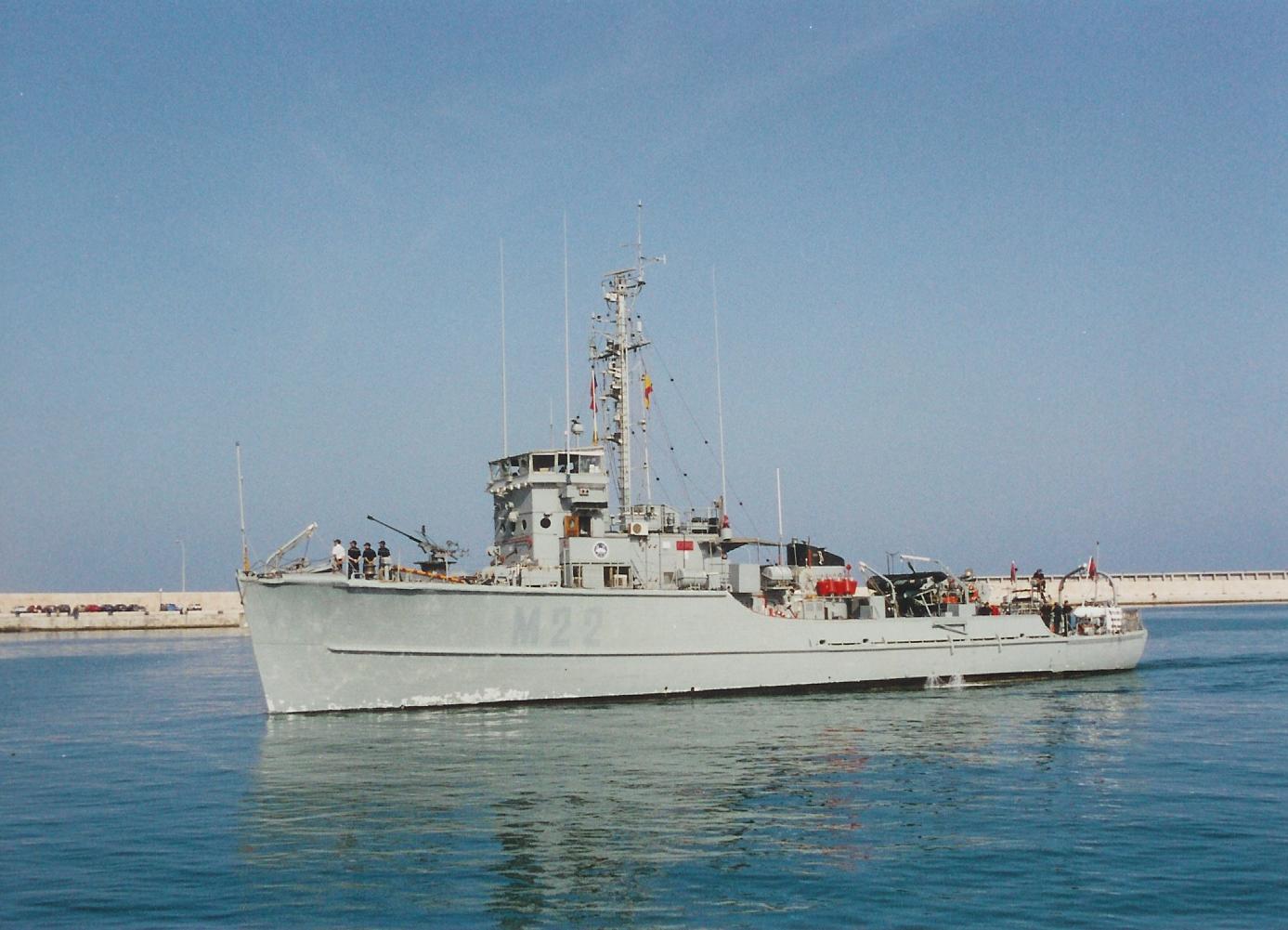

Photo byEugenio Castillo Pert, Málaga

Draw
Draw by Draw by Antoni Casinos


Additional pictures:

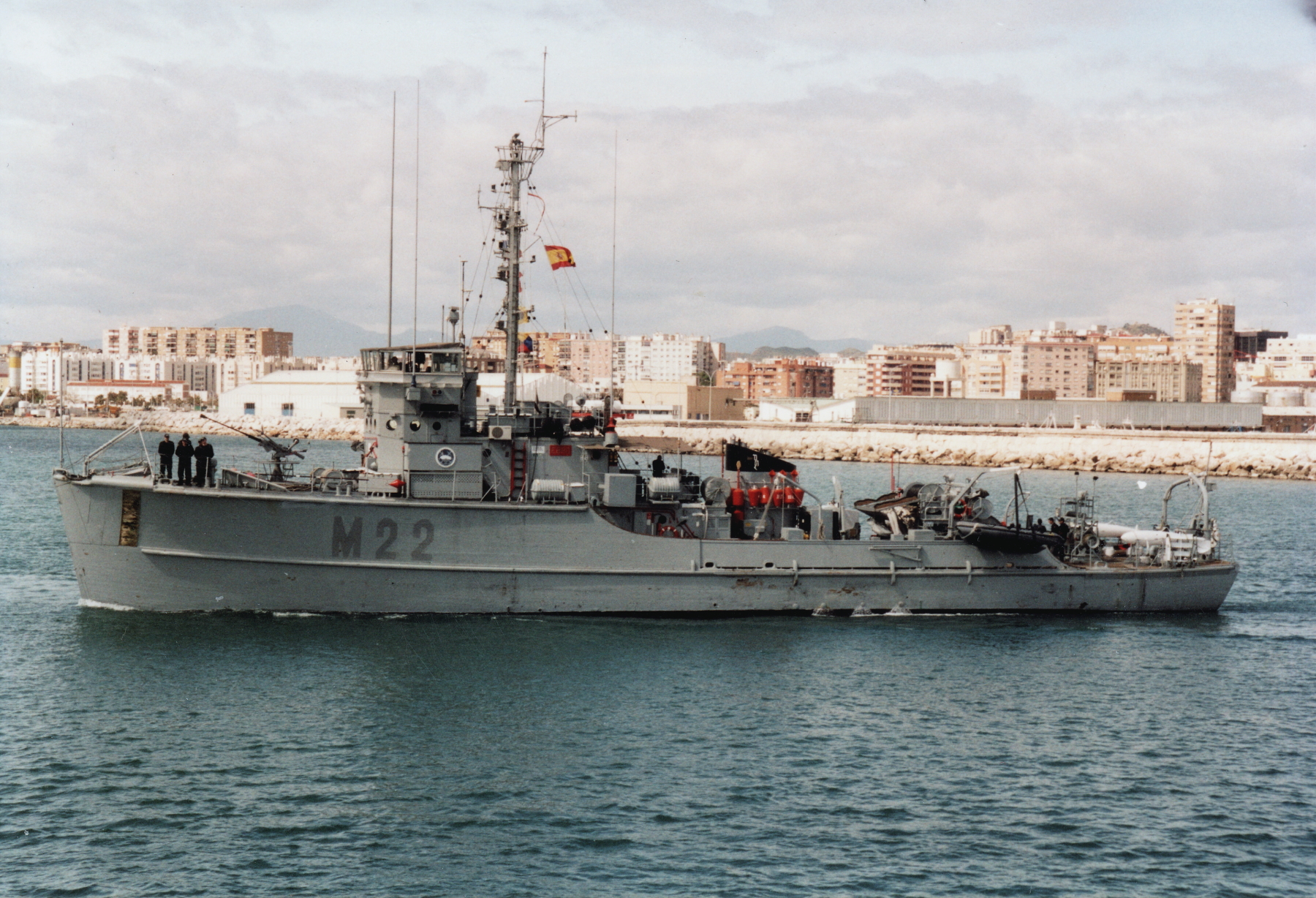

Additional photo Magnify image   Antonio Muñoz Criado, Málaga

Country: Spain Spain
Class, [Type]: Adjutant, [MSC].
Builder: Bellingham, U.S.A.
Launch date: 11 August 1957.
Commission date: 19 December 1958.
Decommission date: 25 February 2005.

Displacement ( tons ): 355 standard, 384 full load.
Dimensions ( metres ): 43,9 x 8,5 x 2,5
Main machinery: 2 x GM 8-268A diesels ( 880 hp ).
Speed ( knots ): 14.
Range ( miles ): 2.700 at 10 knots.
Complement: 39 ( 3 officers ).

Guns: 2 x Oerlikon 20mm ( double ).

Radar: Navigation: Decca TM 626 or RM 914, I band.
Sonar: UQS 1.

Callsign: EBIZ ( Echo Bravo India Zulu )
Comment: Wooden hull. This unit, along with others from its class, was transferred from the US Navy, where it served with code MSC-269.

Similar units:
Spain M25 Genil
Spain M26 Odiel
Greece M60 Erato
Greece M61 Evniki
Belgium M908 Georges Truffaut
