     P-23 Marola
Country: Spain Spain
Class, [Type]: Anaga, [PC].
Builder: Bazán, La Carraca, Spain.
Launch date: 21 April 1980.
Commission date: 04 June 1981.
Decommission date: 11 June 2010.

Displacement ( tons ): 296,5 standard, 350 full load.
Dimensions ( metres ): 44,4 x 6,6 x 2,5
Main machinery: 1 x MTU-Bazán 16V 956 SB90 diesel ( 4.000 hp ).
Speed ( knots ): 22.
Range ( miles ): 4.000 at 13 knots.
Complement: 25 ( 3 officers ).

Guns: 1 x FMC 76mm/50 Mk22, 1 x Oerlikon Mk10 20mm, 2 x 7,62mm.

Radar: Surface: 1 x Consilium Selesmar RTM 12X/M, I band; 1 x Sperry Mk-1270E.

Callsign: EBMQ ( Echo Bravo Mike Quebec )
Comment: Ex - PVZ-23.
Homeport: Santander.

Similar units:

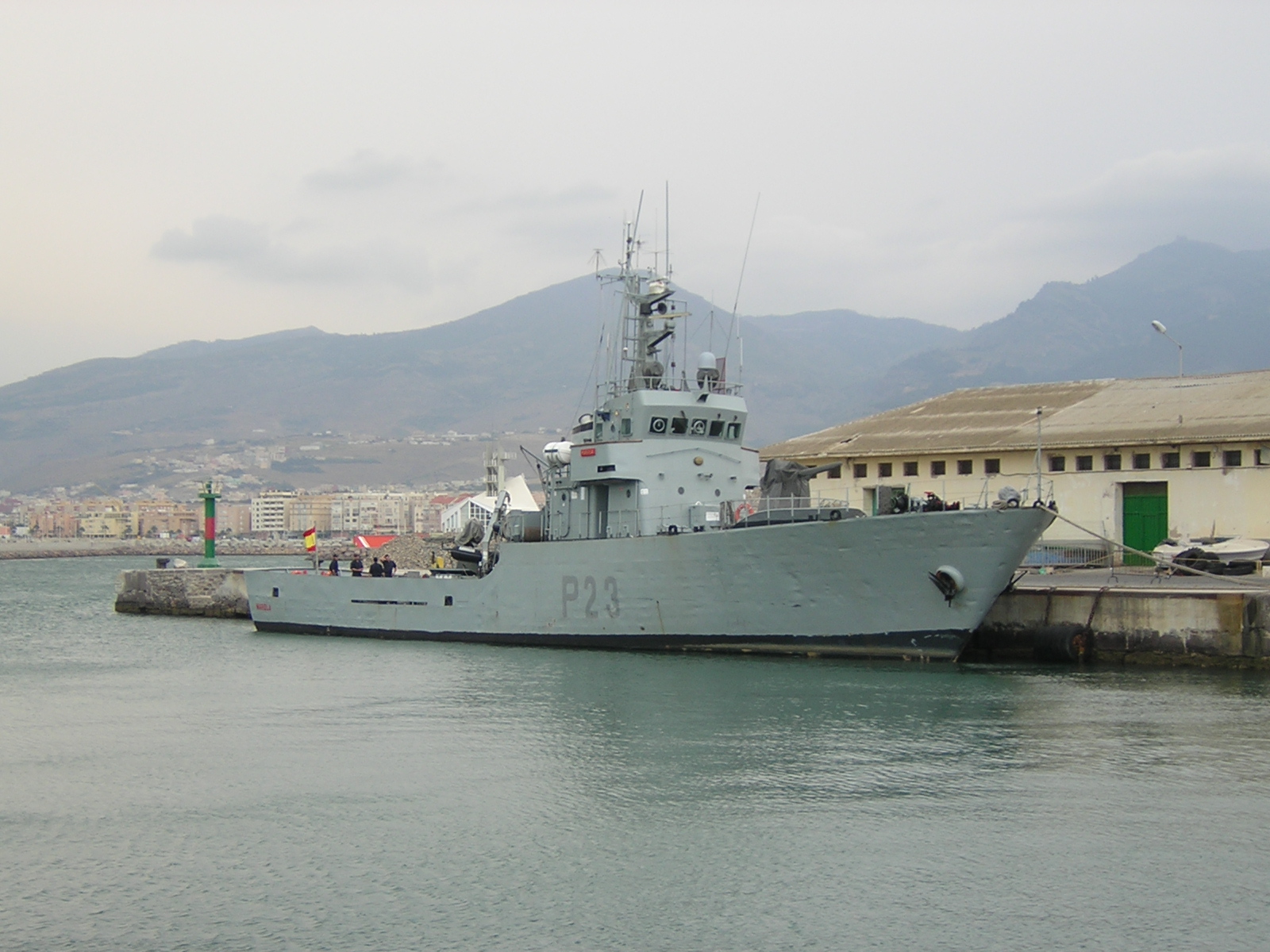

Photo by Bruno Cleries
