     P-31 Conejera
Draw
Country: Spain Spain
Class, [Type]: Conejera, [PB].
Builder: Bazán, El Ferrol, Spain.
Launch date: 09 September 1981.
Commission date: 31 December 1981.
Decommission date: 03 December 2010.

Displacement ( tons ): 85 full load.
Dimensions ( metres ): 32,2 x 5,3 x 1,4
Main machinery: 2 x MTU-Bazán MA 16V 362 SB80 diesels ( 2.840 hp ).
Speed ( knots ): 25.
Range ( miles ): 1.200 at 15 knots.
Complement: 12.

Guns: 1 x Oerlikon Mk10 20mm, 2 x 7,62mm.

Radar: Surface: Racal Decca 1226, I band; Navigation: Sperry, I band.

Callsign: EBHM ( Echo Bravo Hotel Mike )
Comment: Sold to Senegal for a symbolic price of 100 euro.
Homeport: Cartagena.

Similar units:

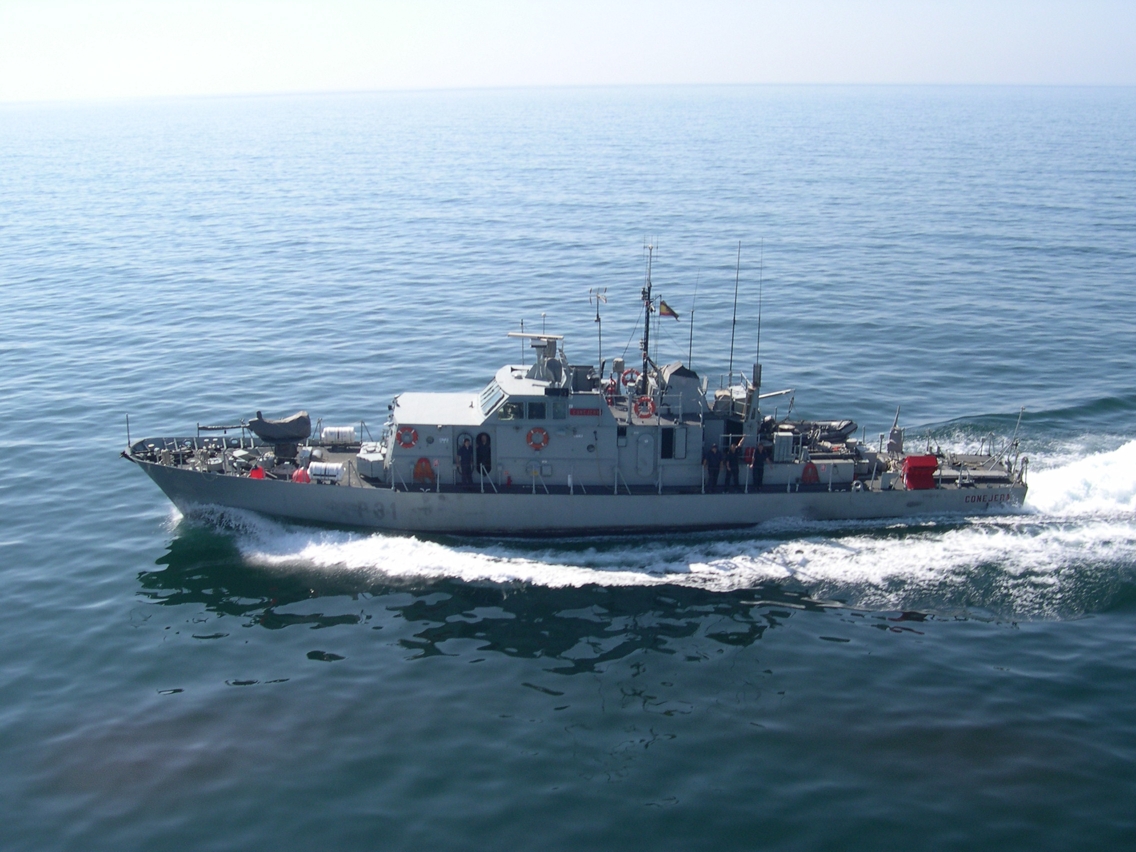

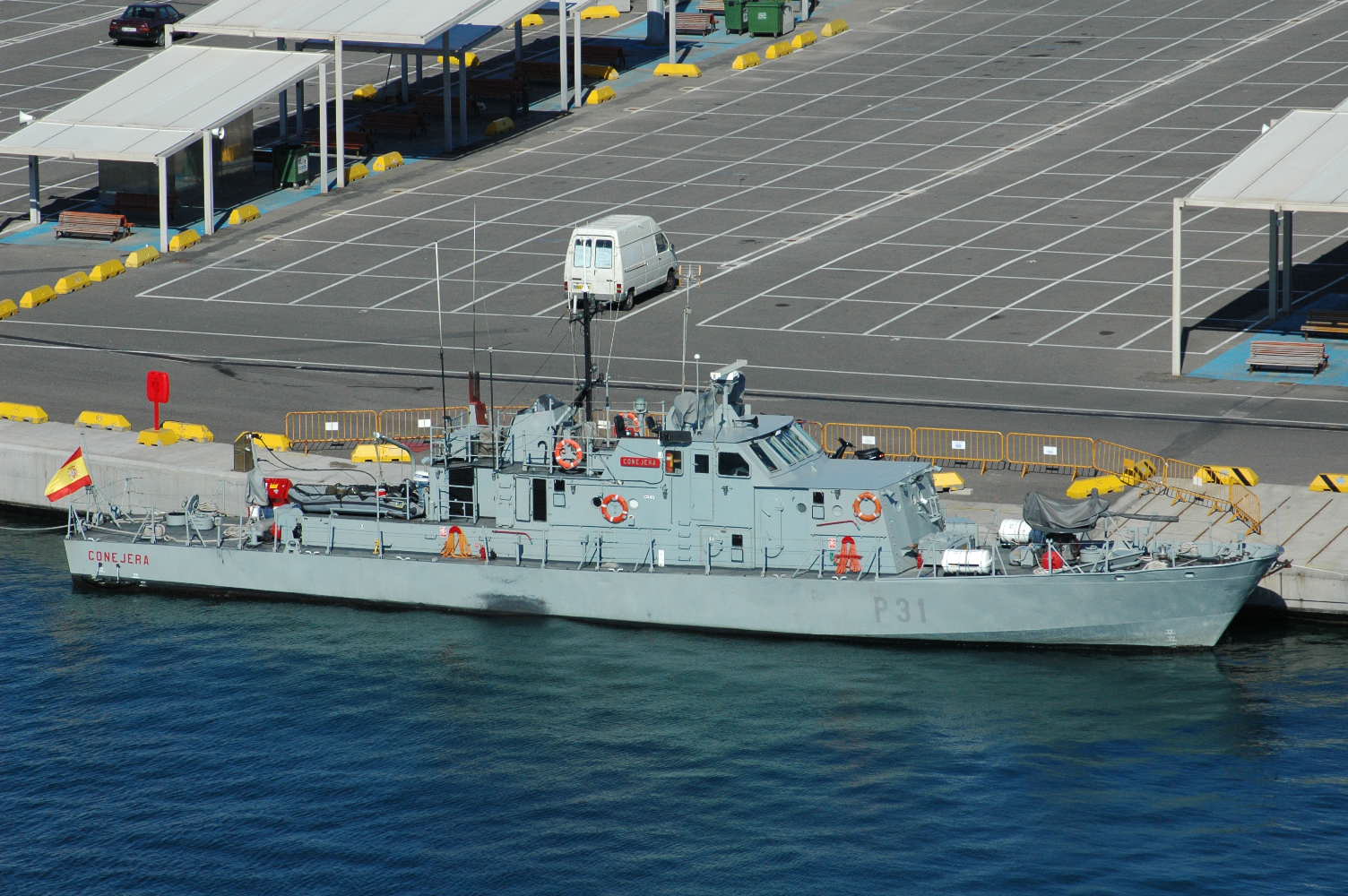

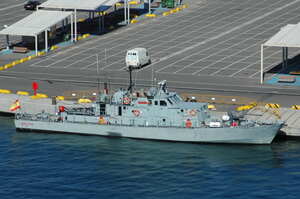

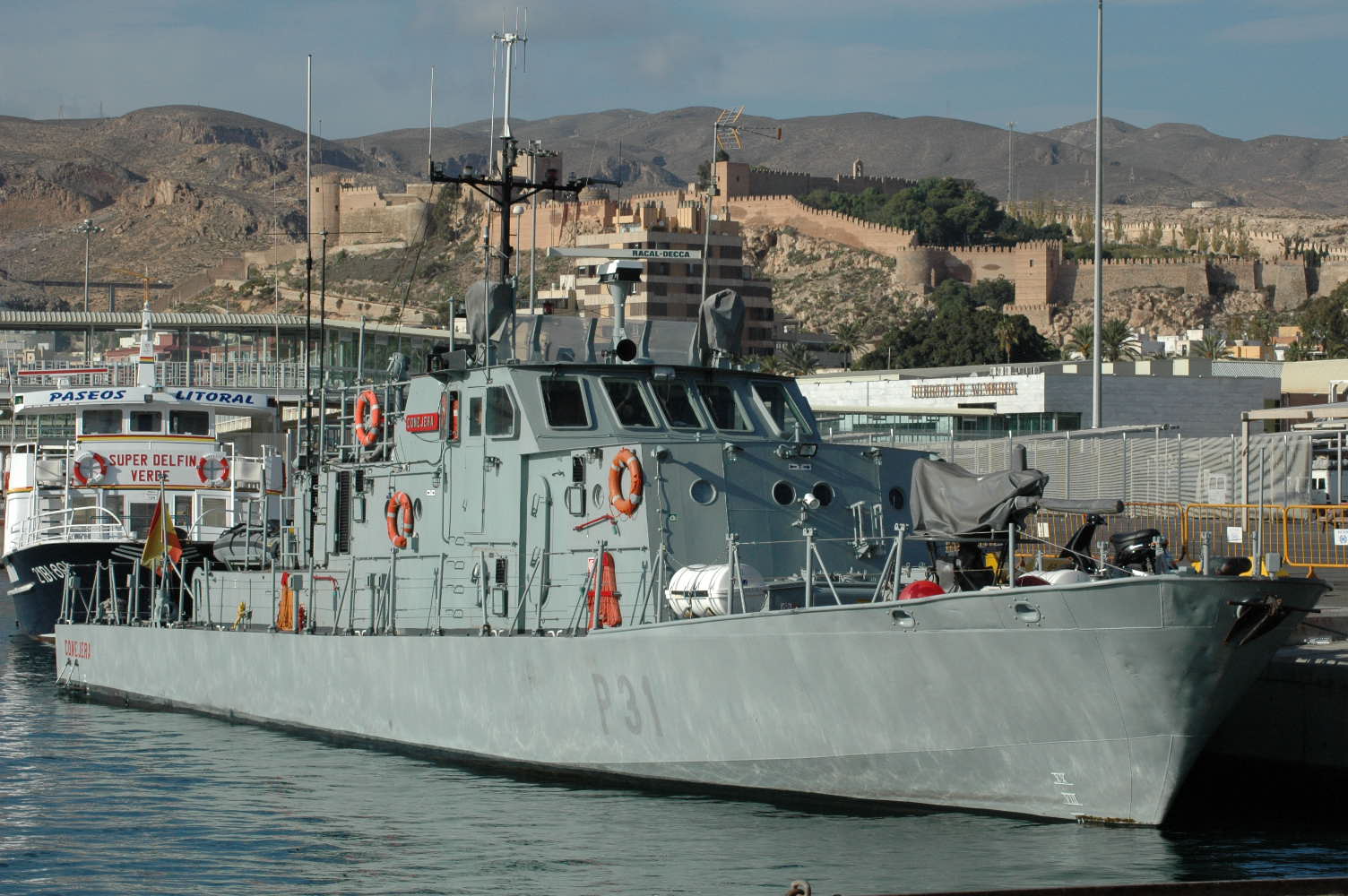

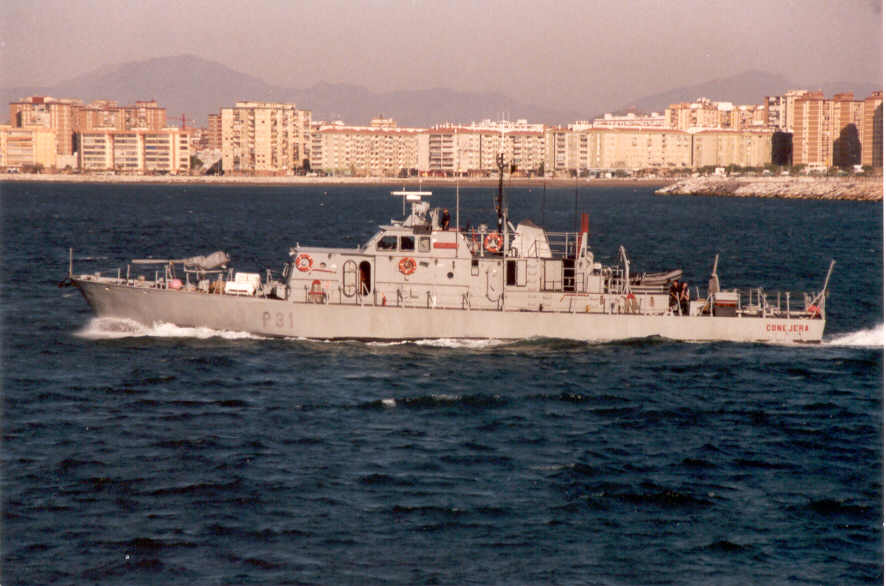

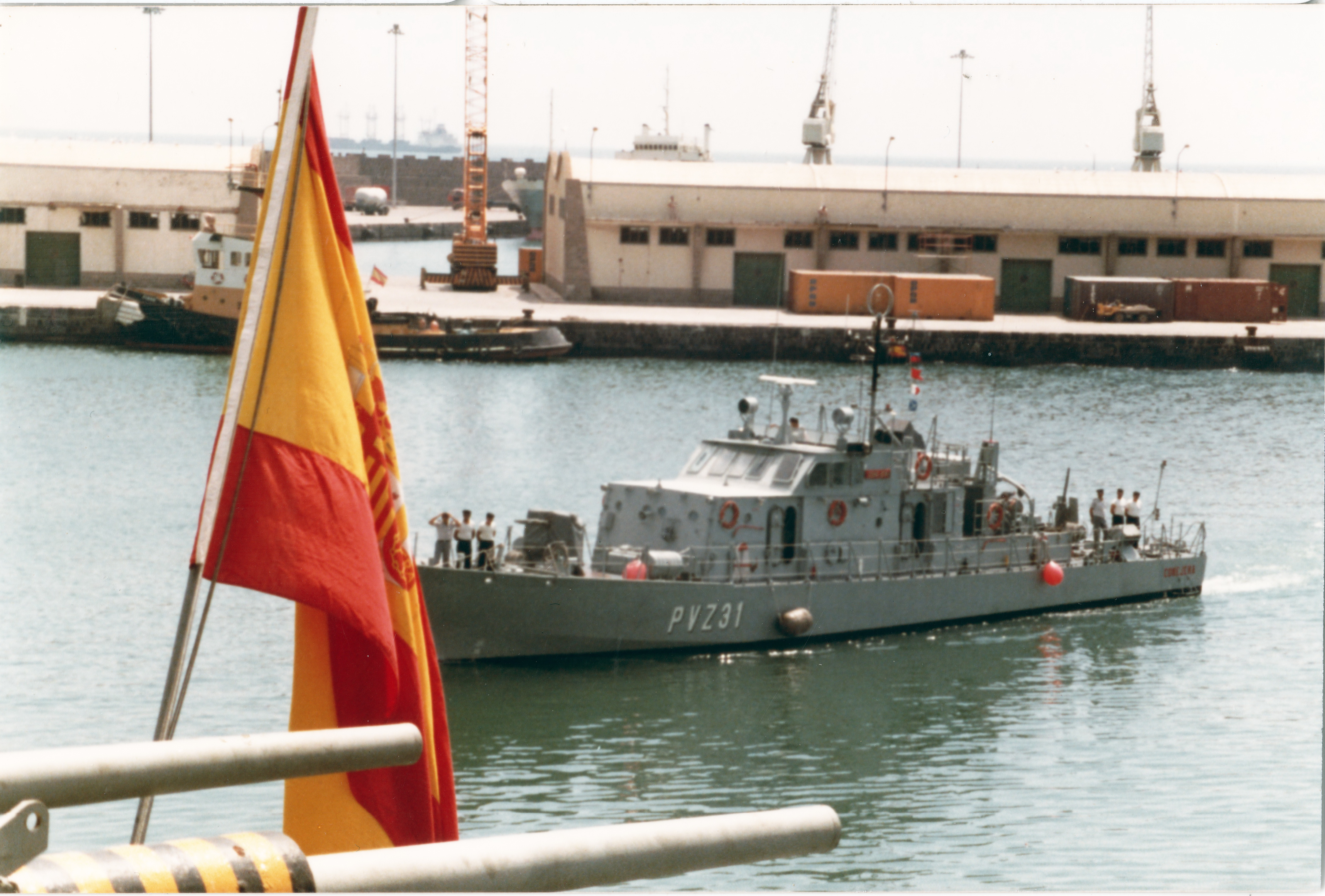

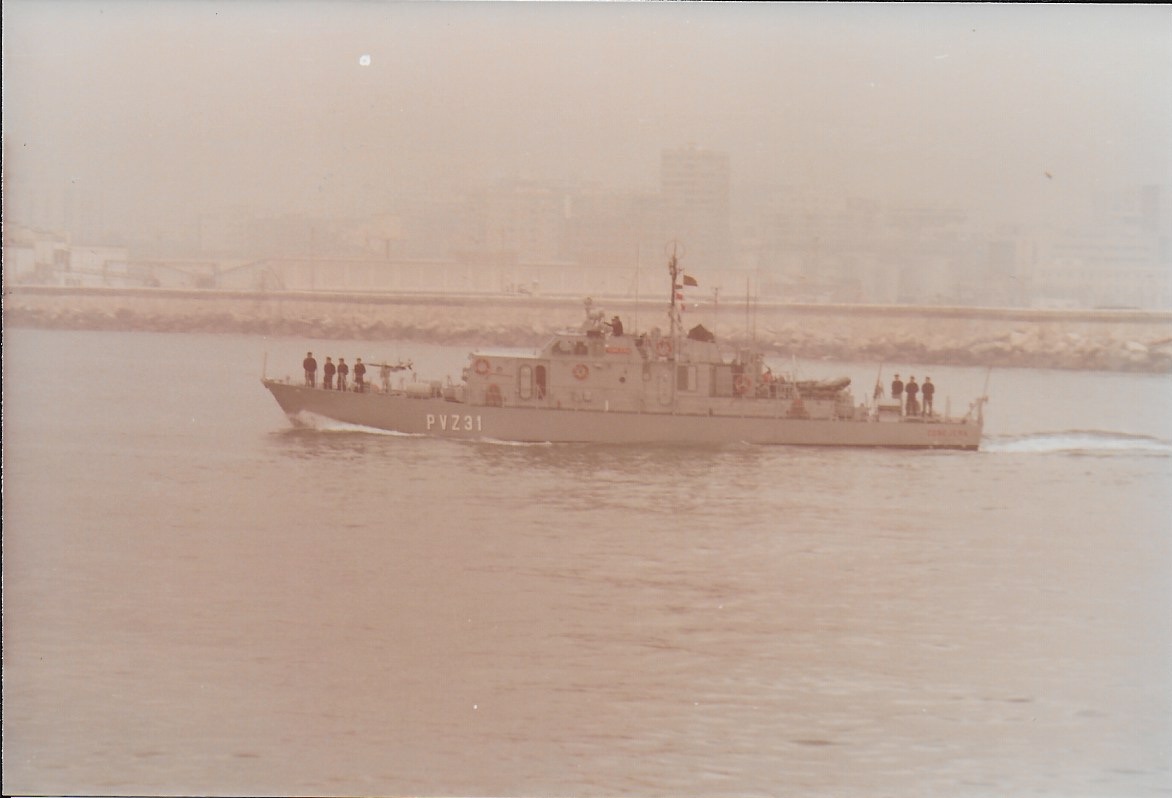

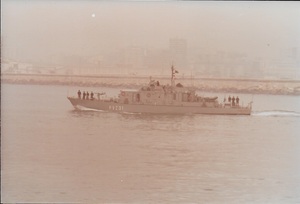

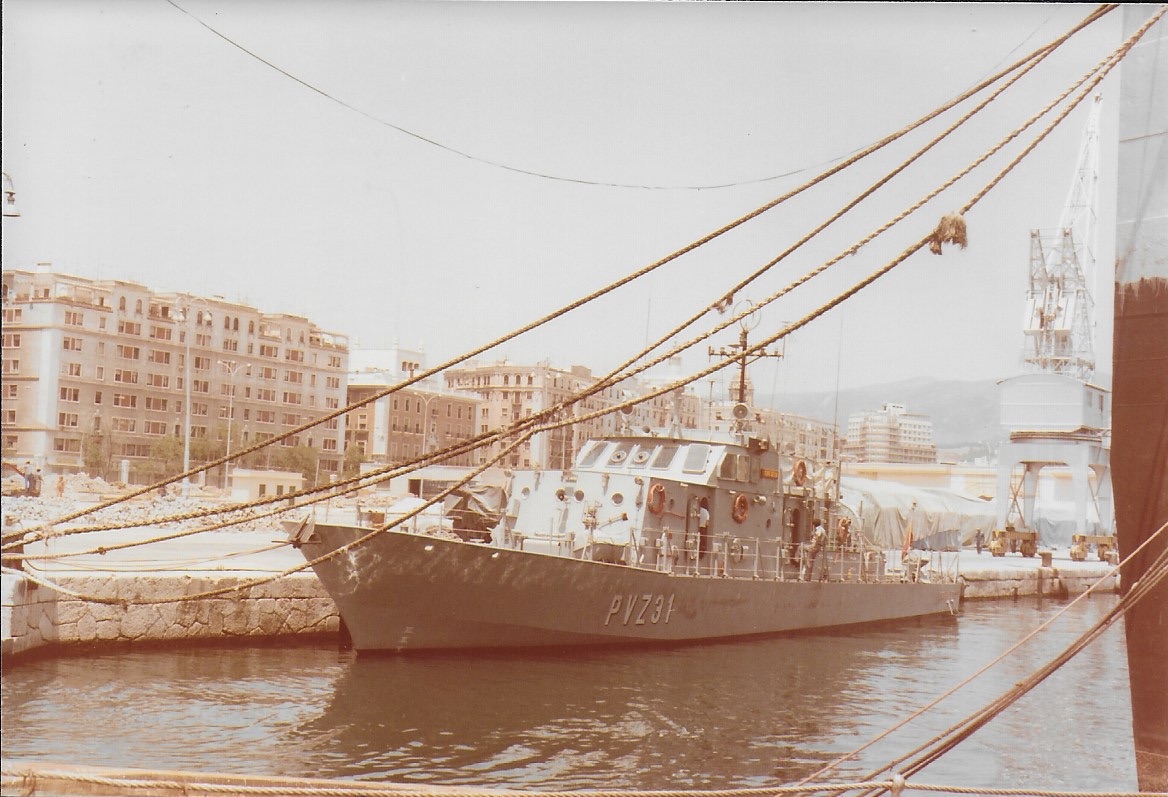

Photo by Eugenio Castillo Pert Photo by Javier Peñuelas Gonzalez Photo by Berta Zea Photo by Berta Zea
