Xoán Portó, San Fernando, Cádiz, 16th October 2009
Additional pictures:
Xoán Portó, San Fernando, Cádiz, 16th October 2009

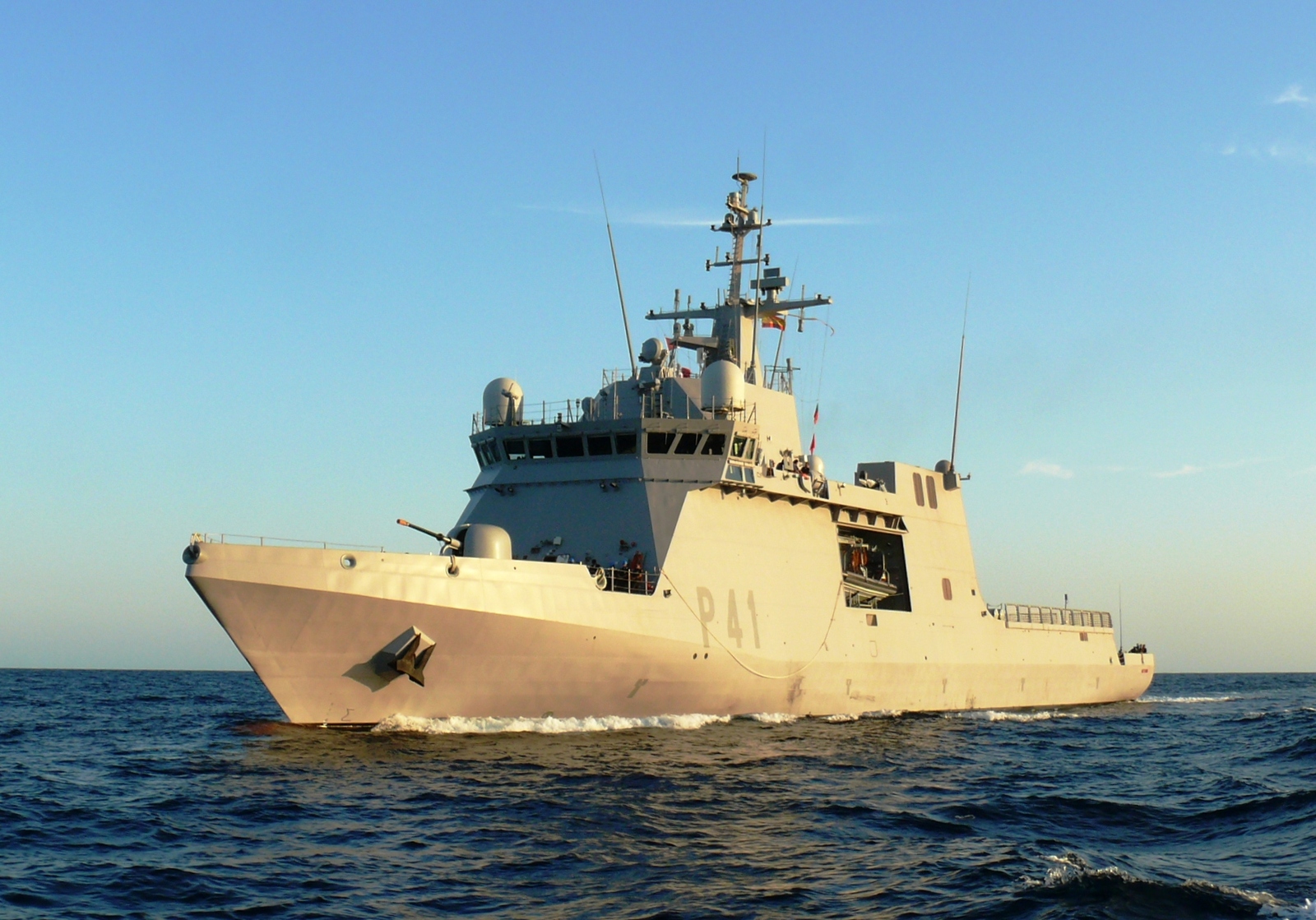

Diego Quevedo Carmona, Cartagena, 19th September 2011
Class, [Type]: Meteoro, [OPV].
Builder: Navantia, San Fernando/Puerto Real, Cádiz, Spain.

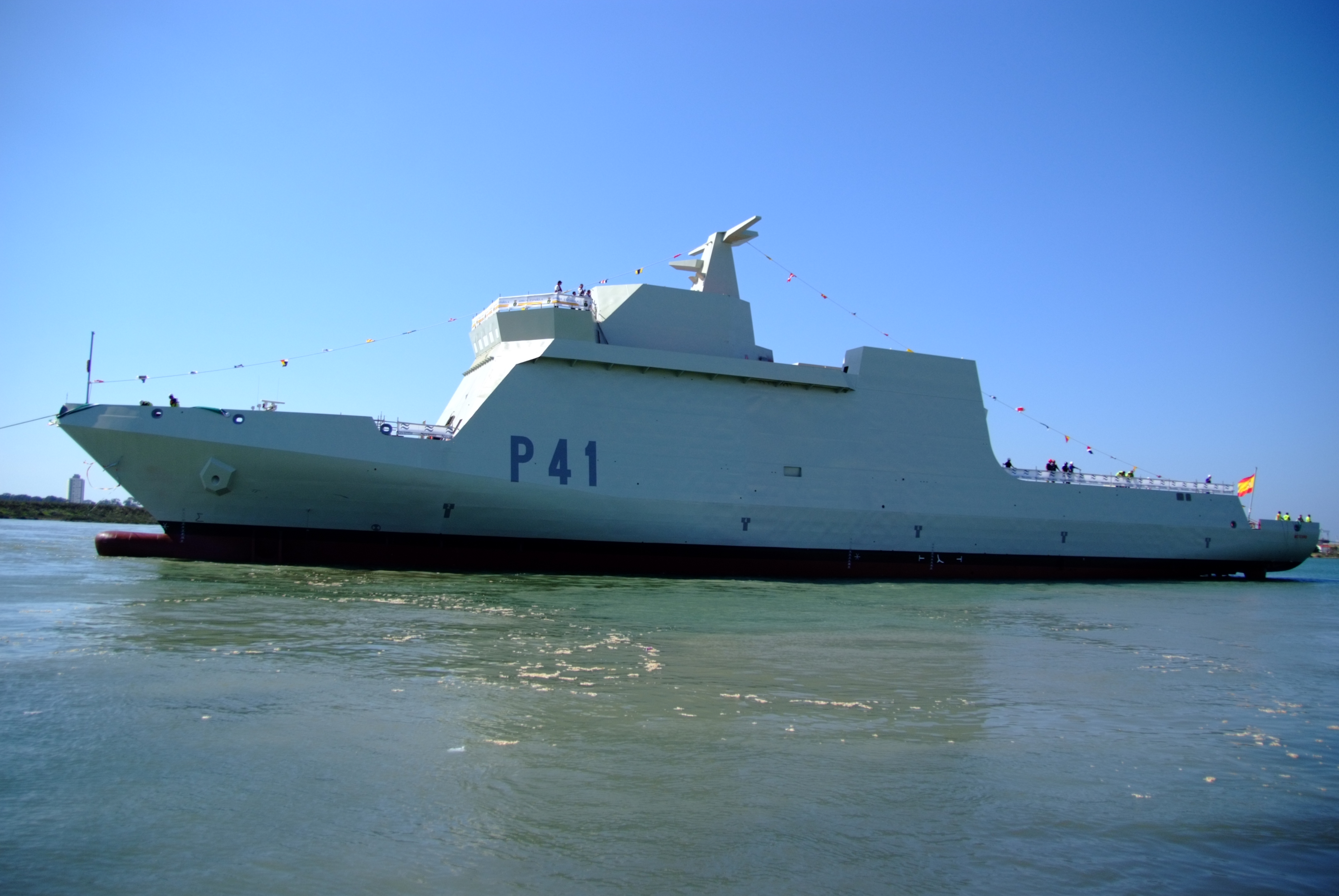

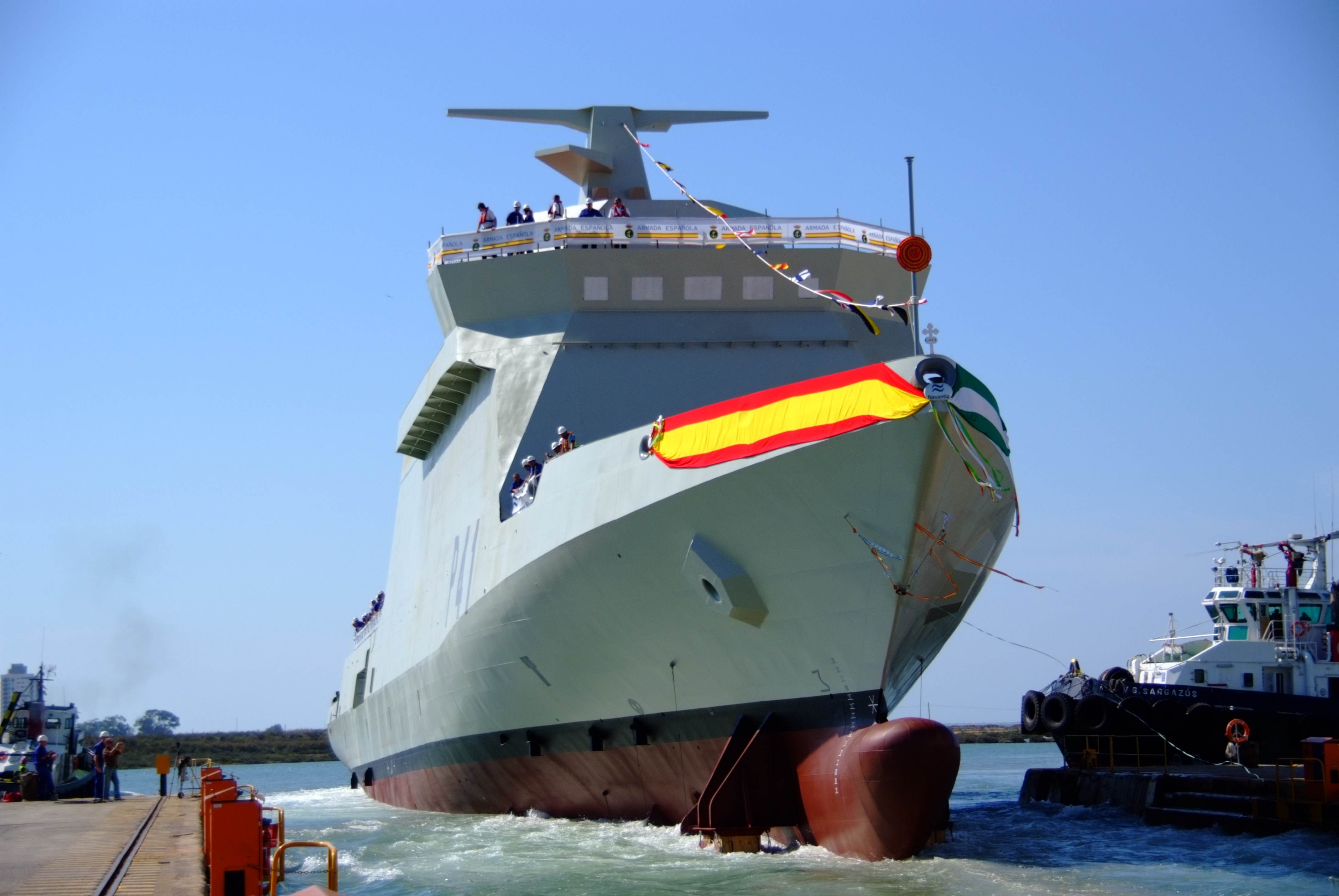

Launch date: 16 October 2009.
Commission date: 28 July 2011.
Displacement ( tons ): 2.500 full load.
Dimensions ( metres ): 93,9 x 14,2 x 4,2
Main machinery: CODOE: 2 x diesel ( 4.500 hp ), 2 x electric ( 750 hp ), 2 x shafts.
Speed ( knots ): 20,5; 19 sustained; 10 patrol.
Range ( miles ): 8.700: 3.500 at 15 knots + 12 days at 6 knots ( 1.700 ) + 3.500 at 12 knots.
Complement: 35 ( 5 officers ) + 35 spare ( On NEO missions this can be up to 80 for 48 hours ).
Guns: 1 x OTO Melara 76/62mm, 2 x Mk38 Mod2 35mm, 2 x 12,7mm.
Military lift: 3 x 5,5tm containers on landing deck, 3 x 16tm containers aft.
Radar: Navigation: 1 x Indra Aries NAV; Air Traffic Control: 1 x Indra Aries SAAAS, X band; Fire Control: 1 x FABA DORNA.
Countermeasures: Decoys: 4 x Loral Hycor SRBOC Mk36, chaff and infrared flares launcher. ESM: Indra Rigel.
Helicopter: The hangar can store 1 x Light ( AB212 ) or Medium ( NH90 ) Helicopter, the landing deck can operate also an SH-3D model.
Comment: Carries 2 x RHIBīs. Landing deck size is 24,7m x 13,5m.
Homeport: LAS PALMAS.
Similar units:
P42 Rayo
