     308 El Lahiq
Country: Morocco Morocco
Class, [Type]: Osprey 55, [PG].
Builder: Danyard A/S, Frederikshavn, Denmark.

Displacement ( tons ): 475 full load.
Dimensions ( metres ): 54,75 x 10,5 x 2,75
Main machinery: 2 x M.A.N.- Burmeister & Wain Alpha 12V.23/30 DVO diesels ( 4.960 hp ).
Speed ( knots ): 19.
Range ( miles ): 4.500 at 16 knots.
Complement: 15.

Guns: 1 x Bofors 40mm/70, 2 x 20mm/90.

Radar: Surface: Racal Decca, I band; Navigation : Racal Decca, I band.

Comment: Launched July 1987. In service since November 1987. This unit, unlike others of the class, has some US-made mapping sonars and navigational equipment and has conducted hydrographic surveys.

Similar units:

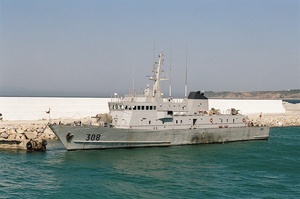

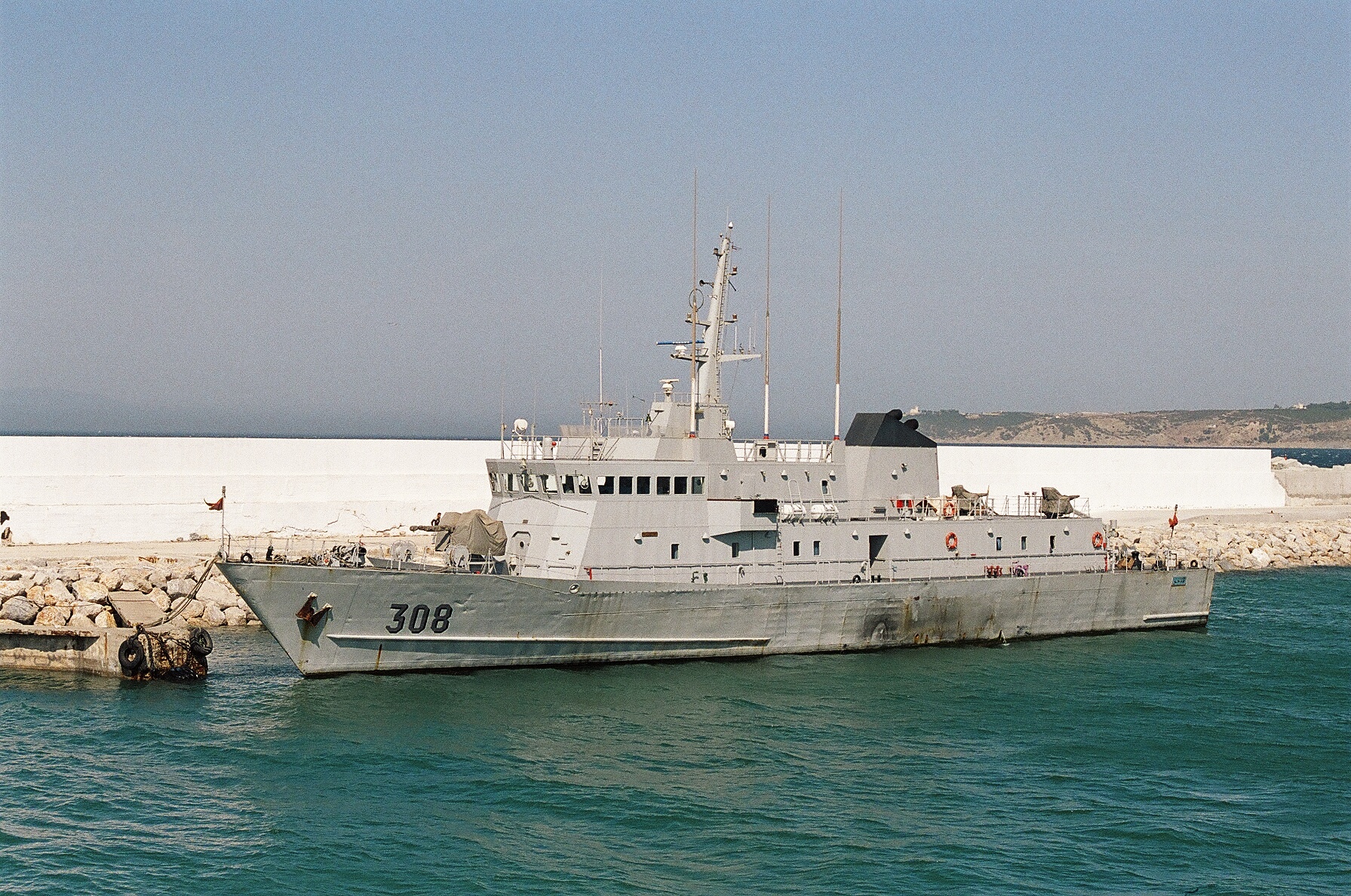

Photo by Javier Bueno Iturbe
