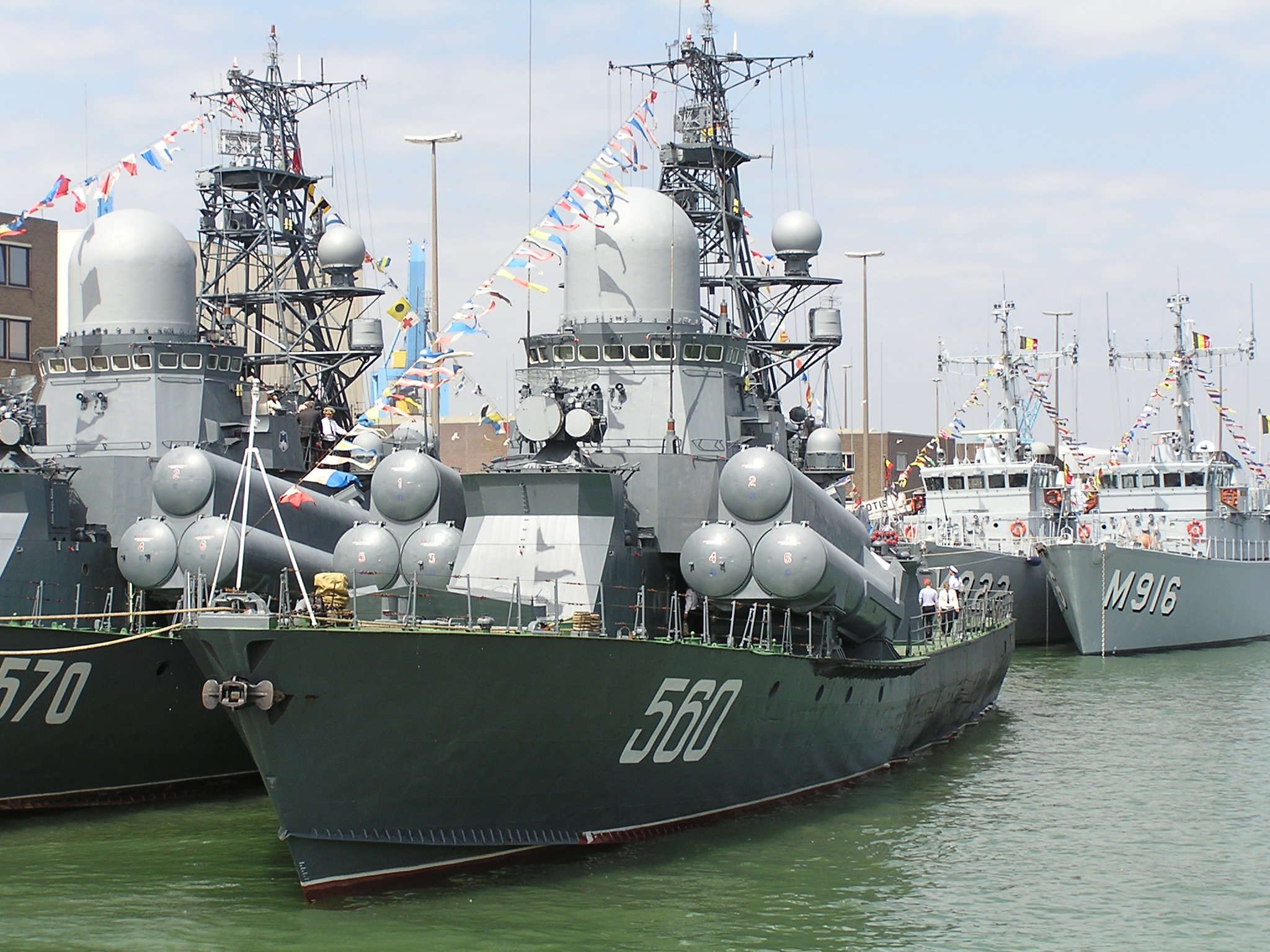

Luis Díaz-Bedia Astor, Zeebrugge Naval Festival, 28th June 2008
Additional pictures:

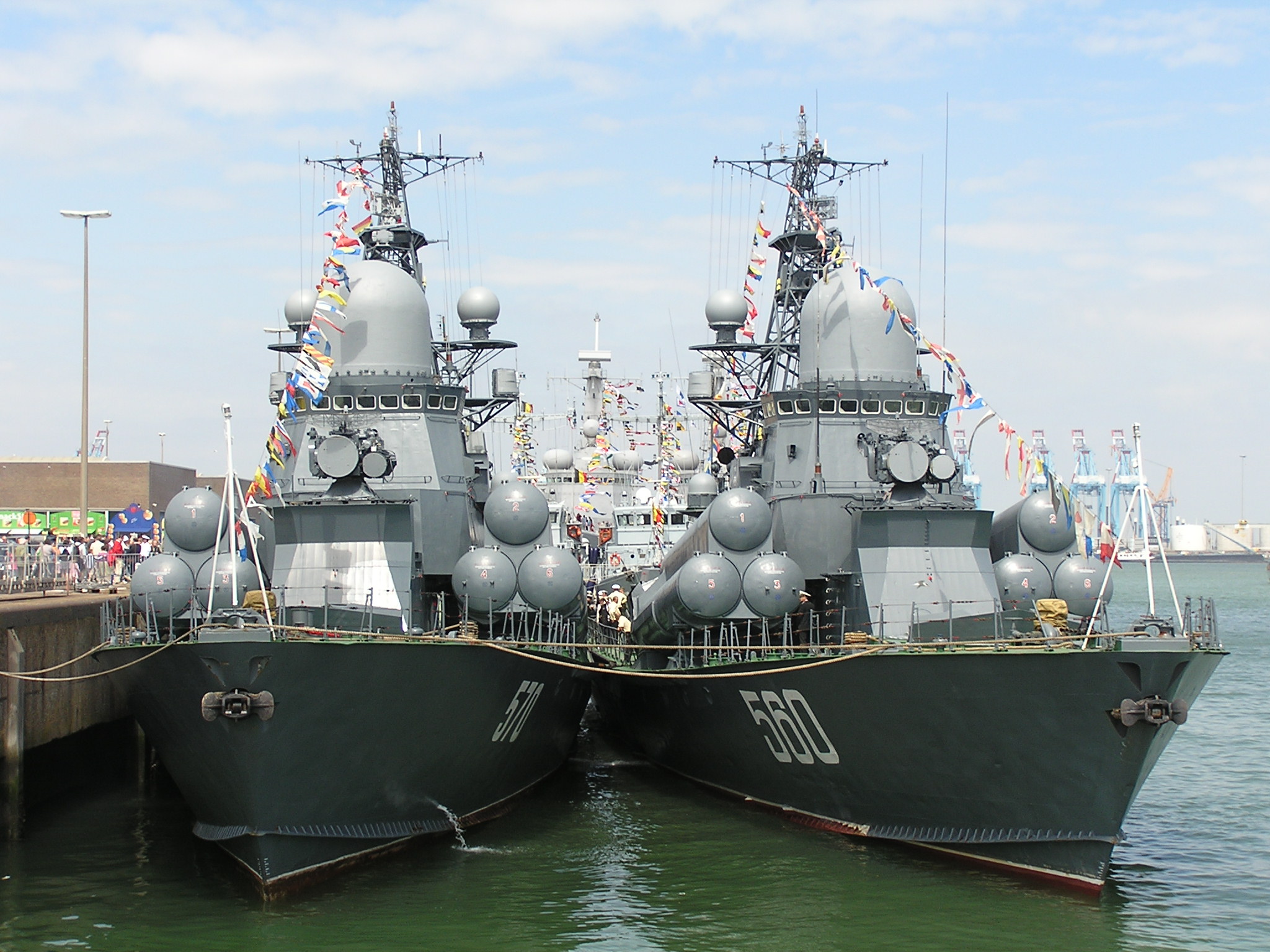

Luis Díaz-Bedia Astor, with 570 Passat, Zeebrugge

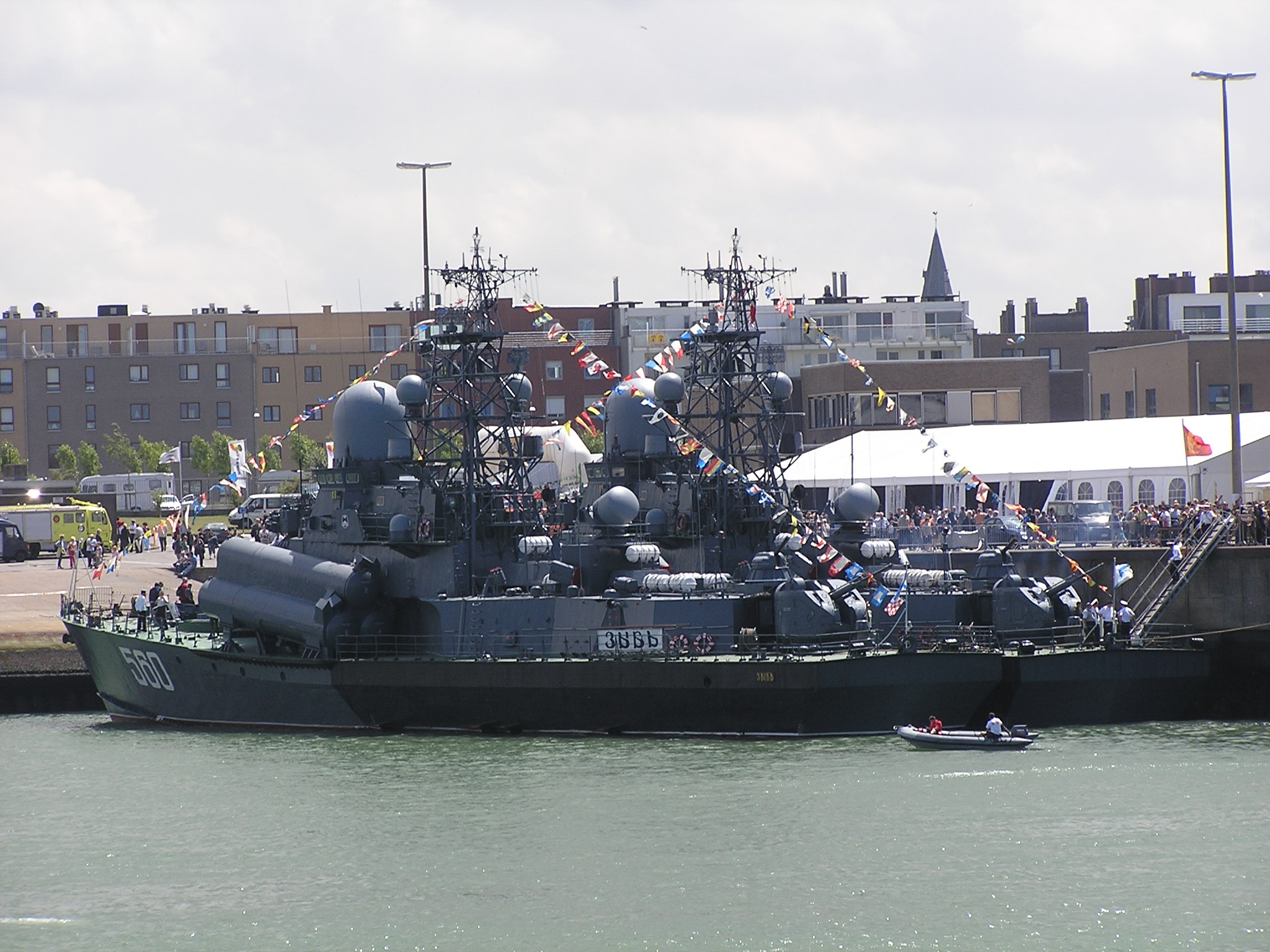

Luis Díaz-Bedia Astor, rear view
Class, [Type]: Nanuchka-III, [PGG].
Builder: Almaz, Petrovskiy SY, St. Petersburg, Russia.
Launch date: 28 February 1989.
Commission date: 31 October 1989.
Displacement ( tons ): 639 standard, 730 full load.
Dimensions ( metres ): 59,3 x 11,8 x 3,08
Main machinery: 3 x M-521 diesels ( 30.000 hp ).
Speed ( knots ): 34.
Range ( miles ): 415 at 34 knots, 2.100 at 18 knots, 3.500 at 12 knots (one engine only).
Complement: 49 ( 7 officers ).
Guns: 1 x 76,2mm/59 AK-176, 1 x 30mm/65 AK-630.
Missiles: SSM: 2 x triple KT-84 launchers ( SS-N-9 Siren - P-120 Malakhit missiles ); SAM: 1 x twin Osa-M ( SA-N-4B ) ( 20 x 9M-33M5/Gecko missiles ).
Radar: Navigation: 1 or 2 x MR-312 Nayada; Navigation/Surface Search: 1 x Dubrava (Peel Pair); Target Designator: 1 x Titanit (Band Stand); Fire Control: 1 x MPZ-301 Baza (Pop Group) for SA-N-4B, 1 x MR-123 Vympel (Bass Tilt) gun.
Countermeasures: Decoys: 4 x PK-10 decoy launchers, 2 x PK-16 decoy launchers; EW: Vympel R2 suite, 2 x Half Hat-B (intercept), 2 x Foot Ball-A (intercept).
Similar units:
570 Passat
