     LSD-51 Oak Hill

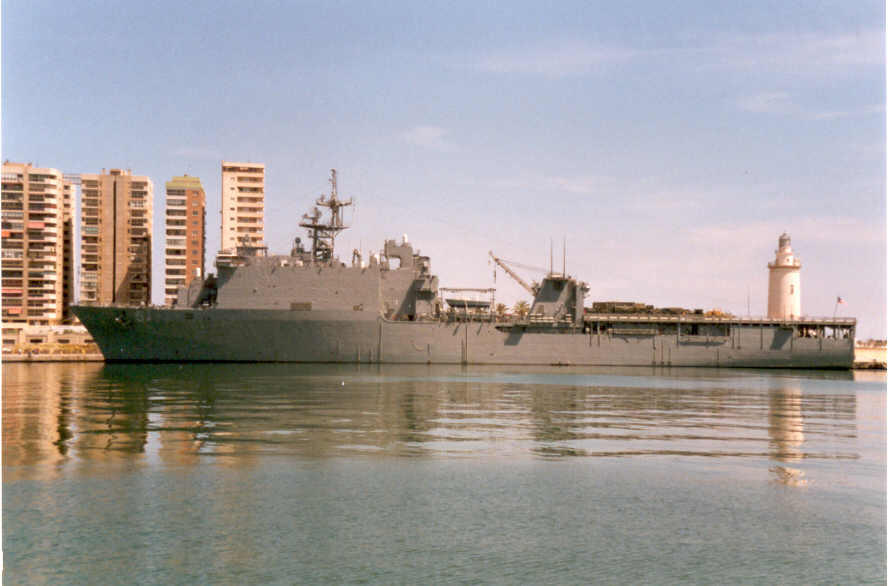

Photo byEugenio Castillo Pert, Málaga
Country: United States United States
Class, [Type]: Harpers Ferry, [LSD].
Builder: Avondale Industries.
Launch date: 11 June 1994.
Commission date: 08 June 1996.

Displacement ( tons ): 11.125 standard, 15.726 full load.
Dimensions ( metres ): 185,6 x 25,6 x 6,3
Main machinery: 4 x Colt SEMT-Pielstick 16 PC2.5 V 400 diesels ( 37.440 hp ).
Speed ( knots ): 22.
Range ( miles ): 8.000 at 18 knots.
Complement: 340 ( 21 officers ).

Guns: 2 x GE/GD Vulcan Phalanx Mk15 CIWS 20mm, 2 x 20mm Mk68 Mod 1.
Military lift: 450 soldiers, 4 x LCAC or 21 x LCM6 or 3 x LCU or 64 x LVTs. 2 x LCPL; 5000 cubic feet for stores. 12200 square feet for vehicles.

Radar: Air: Raytheon SPS 49V, C/D bands. Surface: Norden SPS67V, G band. Navigation: Raytheon SPS64(V)9, I/J bands; TACAN: URN25.
Countermeasures: Decoys: 4 x Loral Hycor SRBOC Mk36 y Mk50, chaff and flare dispensers; ESM: SLQ 32(V)1 or (V)2. SLQ49, radar warning.
Helicopter: has a platform in where 2 x CH53 Stallion helicopters can operate.

Callsign: NRDE ( November Romeo Delta Echo )
